27"-98"IR Infrared Multi Touch Screen Frame For Touch Screen Mirror

Name: 27quot98quotIR Infrared Multi Touch Screen Frame For Touch Screen Mirror
Brand: YCLTOUCH
Price: 1 USD

China 27"-98"IR Infrared Multi Touch Screen Frame For Touch Screen Mirror wholesale

Brand Name : YCLTOUCH

Model Number : LV series

Certification : RoHS, ISO 9001:2000, ce, EMC, LVD

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 20000/month

Delivery Time : 1-3 Days

Interface type : USB

Resolution : 32768*32768

Type : Infrared

Screen size : 15"-340"

Touch points : 10-64 points

Product name : IR Touch Frame

Contact Now

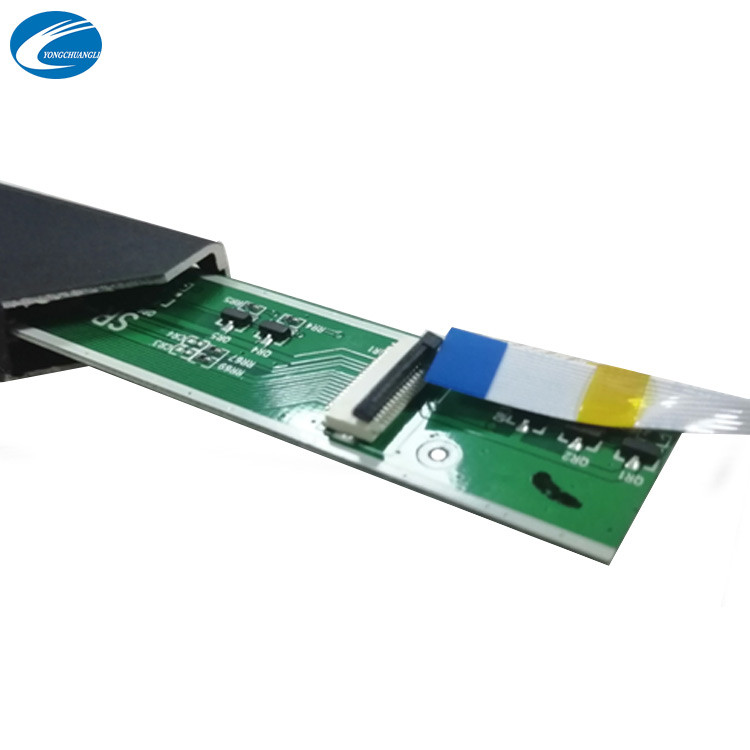

YCLTOUCH ir multi touch screen frame from 27"-98"

Features & Functions:
1. Super-thin,and ultra-narrow frame, aluminium alloy shell
2. High definition, Stable touch, accuracy and smooth writing.
3. Well-positioned ,and support multi touch points
4. Driver-free support for multiple operating systems
5. The size can be customized
6. Long service life, maintenance-free.
7.Strong anti-jamming ability, anti-static performance of industrial ESD.
8.Response fast, sensor discontinuous damage 10%, can still work.
8.No special touch tools are needed, just opaque objects.


Specification
Touch Screen Size
27-98"
Touch Activation Force
No pressure required
Luminous Transmission
>92%(100% with no glass)
Reported Touch Resolution
Without Driver:32768*32768
Touch Response Time(Multi touch)
10-15ms
Touch Response Time(One touch)
7ms
Minimum Recognition Point Size
4mm*4mm
Touch Object Size Recognition
Yes
Interface
Socket type USB cable 1.5m, socket type 5P

Electrical Specification

Touch Refresh Rate≥110Hz
CommunicationUSB 2.0 Full Speed
PowerSupply ModeUSB*1
Working VoltageDC 5.0V±5%
Average Current≤200mA
Power Cunsumption≤ 1.0W
LED Lifetime60000hours
Fault-tolerantAble to work if less than 10% non-consecutive sensors are damaged

Environmental Specification

HumidityUp to 90% RH from 0°C to +40°C, non-condensing
Temperature RangeWorking temperature:-10℃～50℃
Storage temperature:-20℃～60℃
ESDEN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge
Anti-light InterferenceExcellent

 ​
What is a IR Touch Screen ?
YCLTOUCH IR Touch Frame / Screen is a high-precision IR (Infrared) Multi-touch Screen. with interpolation resolution up to 32768*32768 and can be applied in 15''-500'' display.Any nontransparent substance can be detected and located in the screen. IR Multi-touch Screen has many advantages such as high precision, fast response, excellent glare-resistive ability and faulty tolerance, with one time factory calibration.

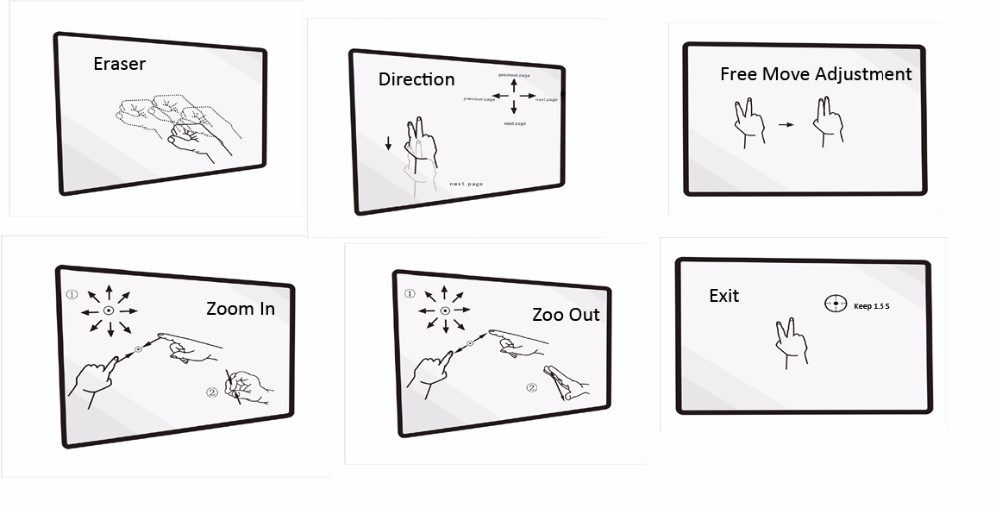

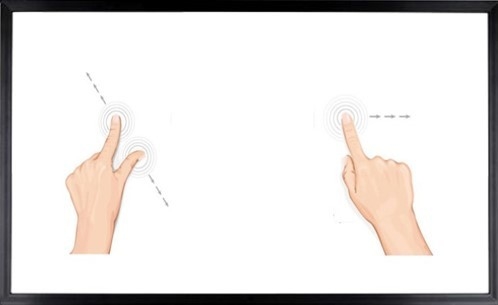

What is Multi-Touch ?Multi-touch is a method of input on a touchscreen that allows two or more fingers to be used on the screen at one time.YCLTOUCH's LV Serial Touch Frame is famous for introducing multi-touch to the game machine,KIOSK interactive display,Adverstising Display in the world by using it to allow pinching and stretching gestures on the screen to control zooming. Multi-touch is something typically associated with the newest Infrared touchscreen technology.
How does it work ?An infrared touchscreen uses an array of X-Y infrared LED and photodetector pairs around the edges of the screen to detect a disruption in the pattern of LED beams. These LED beams cross each other in vertical and horizontalpatterns. This helps the sensors pick up the exact location of the touch. A major benefit of such a system is that it can detect essentially any input including a finger, gloved finger, stylus or pen. It is generally used in outdoor applications and point of sale systems which can not rely on a conductor (such as a bare finger) to activate the touchscreen. Unlike capacitive touchscreens,infrared touchscreens do not require any patterning on the glass which increases durability and optical clarity of the overall system. Infrared touchscreens are sensitive to dirt/dust that can interfere with the IR beams, and suffer from parallax in curved surfaces and accidentalpress when the user hovers his/her finger over the screen while searching for the item to be selected .


27"-98"IR Infrared Multi Touch Screen Frame For Touch Screen Mirror Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Yongchuangli Electronic Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Touch Screen Size	27-98"
Touch Activation Force	No pressure required
Luminous Transmission	>92%(100% with no glass)
Reported Touch Resolution	Without Driver:32768*32768
Touch Response Time(Multi touch)	10-15ms
Touch Response Time(One touch)	7ms
Minimum Recognition Point Size	4mm*4mm
Touch Object Size Recognition	Yes
Interface	Socket type USB cable 1.5m, socket type 5P

Touch Refresh Rate	≥110Hz
Communication	USB 2.0 Full Speed
PowerSupply Mode	USB*1
Working Voltage	DC 5.0V±5%
Average Current	≤200mA
Power Cunsumption	≤ 1.0W
LED Lifetime	60000hours
Fault-tolerant	Able to work if less than 10% non-consecutive sensors are damaged

Humidity	Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range	Working temperature:-10℃～50℃ Storage temperature:-20℃～60℃
ESD	EN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge
Anti-light Interference	Excellent
